Connect extracellular matrix architecture to directional support

1. Define the structure and boundary

Connective tissues contain cells within an extracellular matrix whose ground substance and fibers strongly shape function. Fibroblasts maintain many connective matrices; adipocytes store lipid; cartilage and bone have specialized cells and matrices; blood has a fluid matrix. These are not simply gaps between more important tissues. Matrix composition, hydration, mineralization and organization can support, cushion, transport or transmit forces in different contexts.

2. Connect anatomical evidence and mechanism

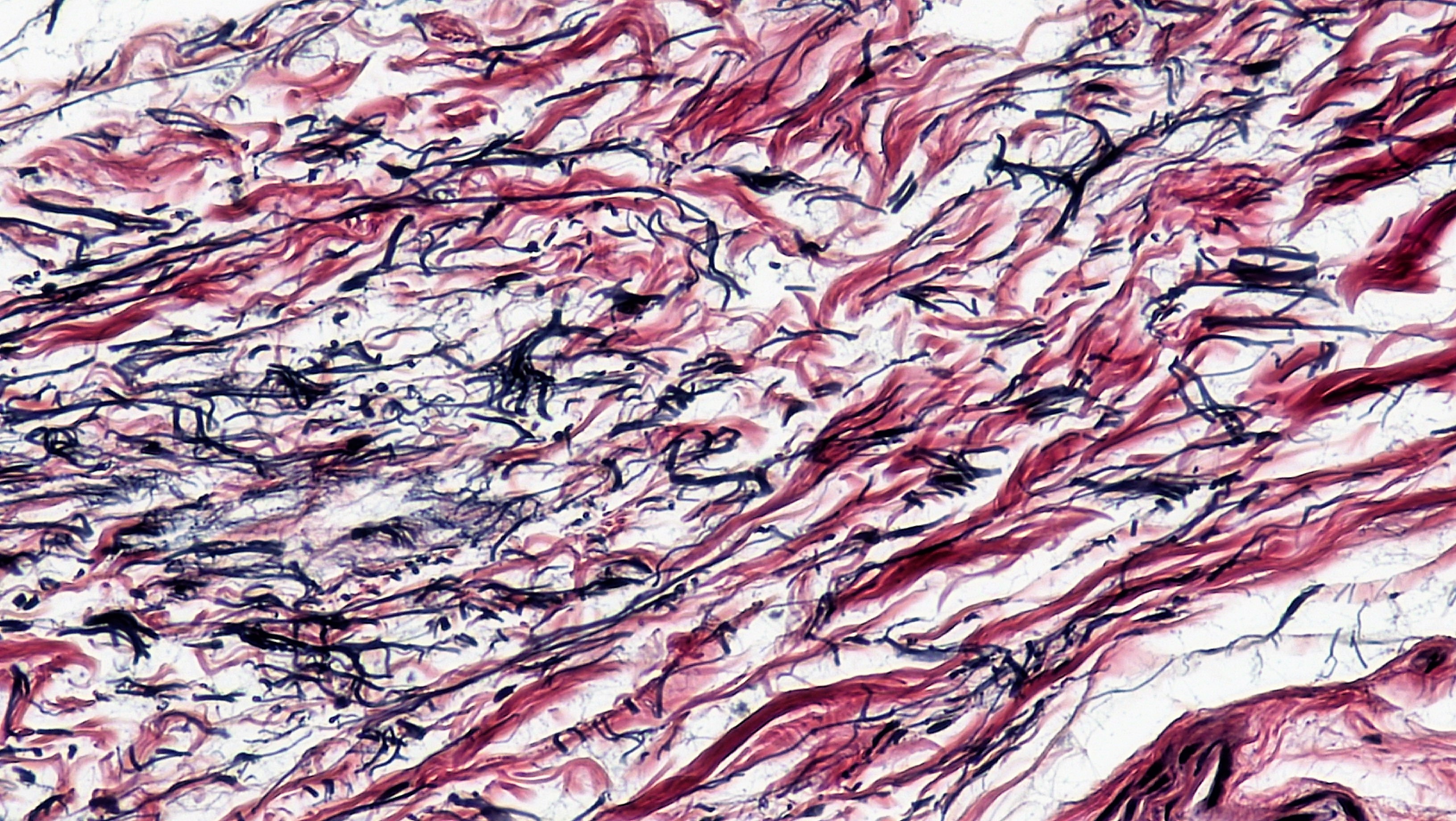

Collagen fibers resist tensile loading, elastic fibers can stretch and recoil, and reticular networks provide fine supporting frameworks. Dense regular connective arrangements favor a dominant loading direction, whereas multidirectional arrangements distribute support across directions. A dark line in a particular stain is not by itself a mechanical test. The actual CC0 elastic-tissue image contains dark branching fibers among thicker pink bundles and scattered nuclei; record that visible organization separately from the source’s tissue label.

The model is an explicit small-strain composite, not an estimate from the image. A fraction f of aligned load-bearing fibers lies at angle θ to a prescribed uniaxial deformation. With transverse strain and rotation suppressed, fiber axial strain scales as cos² θ; projecting its stress back onto the loading axis supplies another cos² factor. We stipulate normalized stiffness K=1+9f cos⁴ θ, including a constant matrix baseline of 1. The coefficient 9 is a teaching choice, not a material constant.

Real connective tissues can straighten crimped fibers, rotate, change hydration and remodel, so their force–deformation curves need not follow this linear expression. Compare direction at fixed composition before attributing a stiffness difference to changed protein amount. A paired directional measurement from one sample is not independent evidence from many specimens; sample identity, loading protocol and preparation must be retained in any practical review.

Observe actual tissue images before accepting a label

These are actual published micrographs, not generated images or the numerical model’s invented measurements. Retain two visible features, a tentative tissue class and one unresolved feature in your lesson notebook. The accessible descriptions supply equivalent observations; using them or the public source label is guided evidence, not a blinded identification test.

Compare source identity, visible evidence and limits

The source identifies human elastic connective tissue. The visible network is consistent with extracellular fiber organization; exact fiber chemistry and mechanical properties cannot be uniquely inferred from color alone. The single-angle model is deliberately not fitted to this specimen.

Berkshire Community College Bioscience Image Library; 26 March 2018. Source and file history · CC0 1.0 dedication · Download unchanged image. Checked 30 October 2026. No endorsement or diagnostic use is implied.

Download exact source, license, dimensions and SHA-256 provenance. For independent practical evidence, a qualified reviewer must supply a genuinely unfamiliar licensed specimen/image and assess identification, uncertainty and reasoning; viewing these labeled examples does not fulfill that gate.

3. Audit an original worked comparison

At f=0.5 and θ=45°, cos⁴θ=1/4. The projected fiber contribution is 9×0.5×0.25=1.125 and total K=2.125. At θ=90° the stipulated axial fiber contribution is zero, but the matrix baseline remains 1.

4. Predict and investigate

Predict first: Must equal fiber fractions yield equal stiffness when the load direction changes?

Compare θ=0°,45°,90° at f=0.5, then change f at fixed 45°. Retain the two projection steps and identify features in the actual tissue image that the single-direction model omits.

5. Transfer to a changed case

Apply the mechanism to a changed boundary

For f=1 and θ=60°, compute K. Does this establish the stiffness of the supplied elastic-tissue specimen?

Retain the first response, units, uncertainty and any prior feedback exposure in the notebook before comparing this public explanation.

Compare a worked response

cos60°=1/2, so K=1+9/16=1.5625. No: fiber fraction, constitutive response and deformation constraints were supplied, not measured from that specimen.

6. Retain an evidence-based defense

Use the Anatomy and Physiology course workspace to preserve original reasoning, actual image observations with uncertainty, model settings and a reviewer-supplied new transfer. Public feedback is guided practice, not independent mastery or clinical assessment. No examination, personal health data, specimen collection or physiological challenge is requested.

Supporting anatomical mechanism, checked 30 October 2026. Numerical packets and diagrams are original teaching models; actual tissue images have separate attribution, download and CC0 provenance records.
